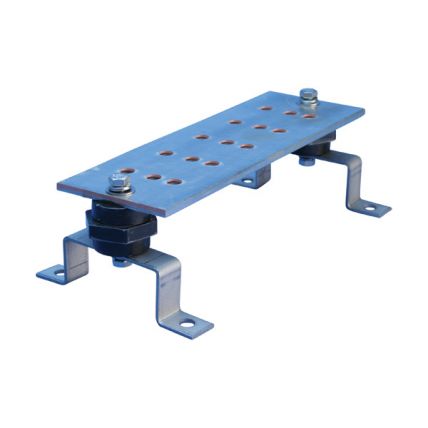

Proper bonding is essential to create an equipotential plane between service grounds and equipment during fault and transient conditions. This equipotential plane provides a near-zero voltage differential, and serves to protect people and equipment during these events. The grounding busbar is the most popular bonding product in use today.
- Provides a convenient, single-point grounding and bonding location
- Conductors are welded to the bar using a nVent ERICO Cadweld exothermic connection or are mechanically fastened by using lugs
- Custom bars can be designed and manufactured to customer specifications
Material - Copper
Busbar Configuration - Busbar, Insulators and Brackets
Hole Pattern - AA
Mounting Hole Size - 11.1 mm
Length (L) - 406 mm
Width (W) - 102 mm
Thickness (T) - 6.4 mm
Tin Plating - Yes
Pigtail Included - No
Certifications - cULus
Standard Packaging Quantity - 1 pc
UPC - 78285680310
EAN-13 - 0782856803102
